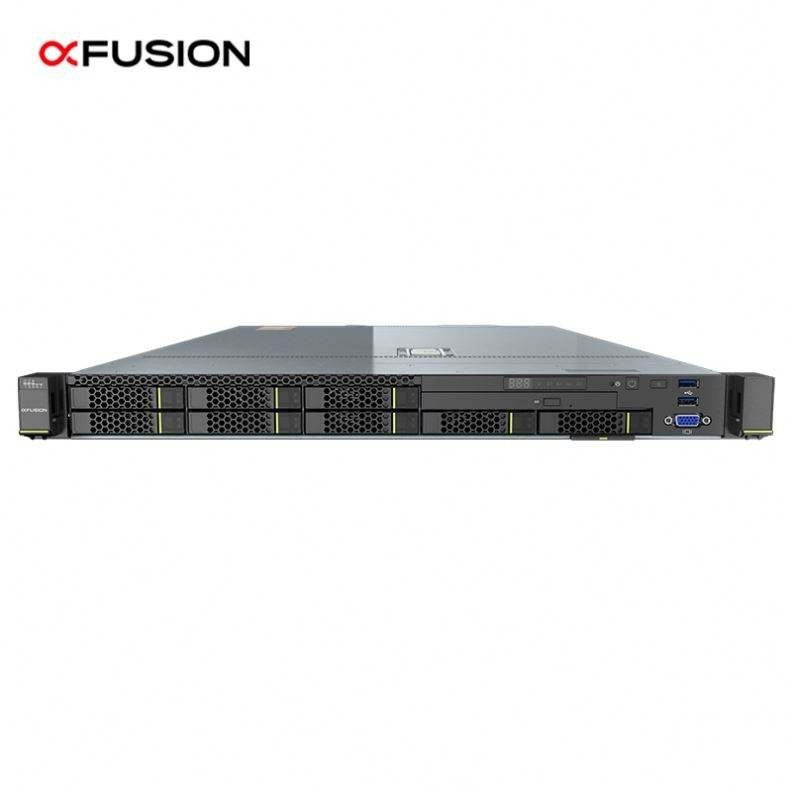

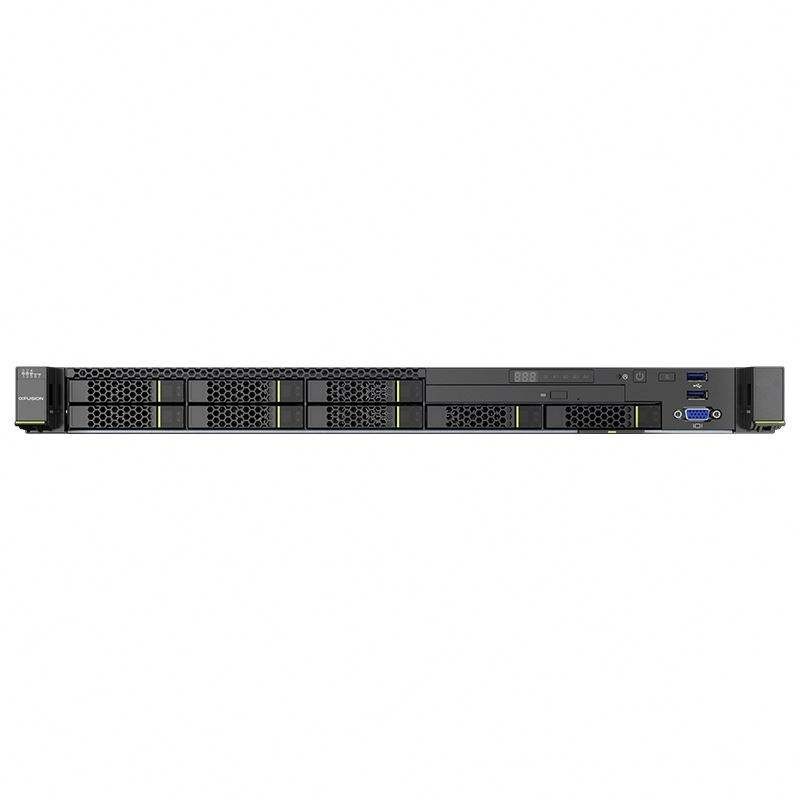

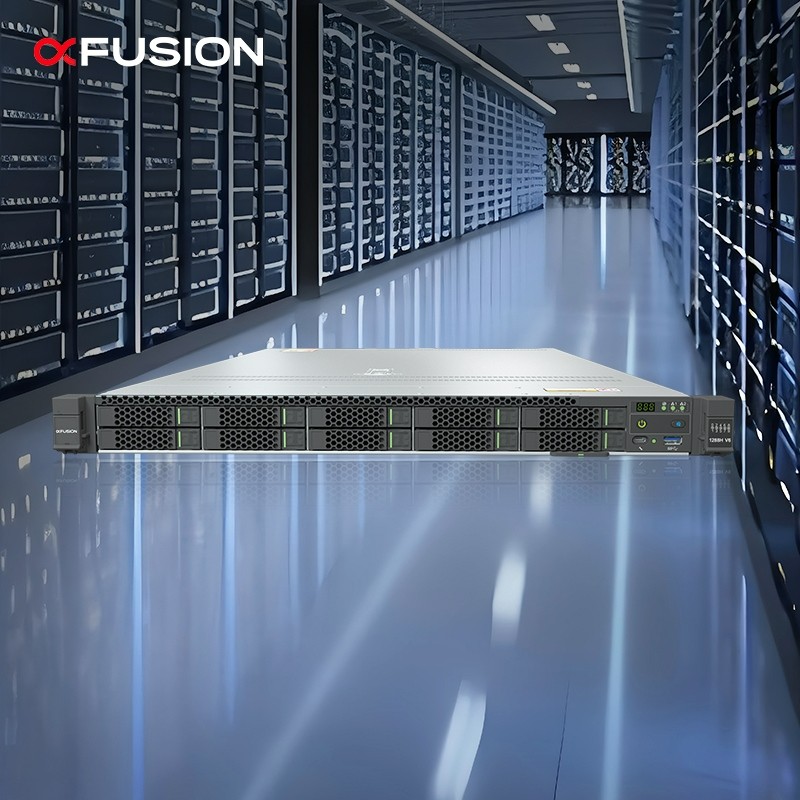

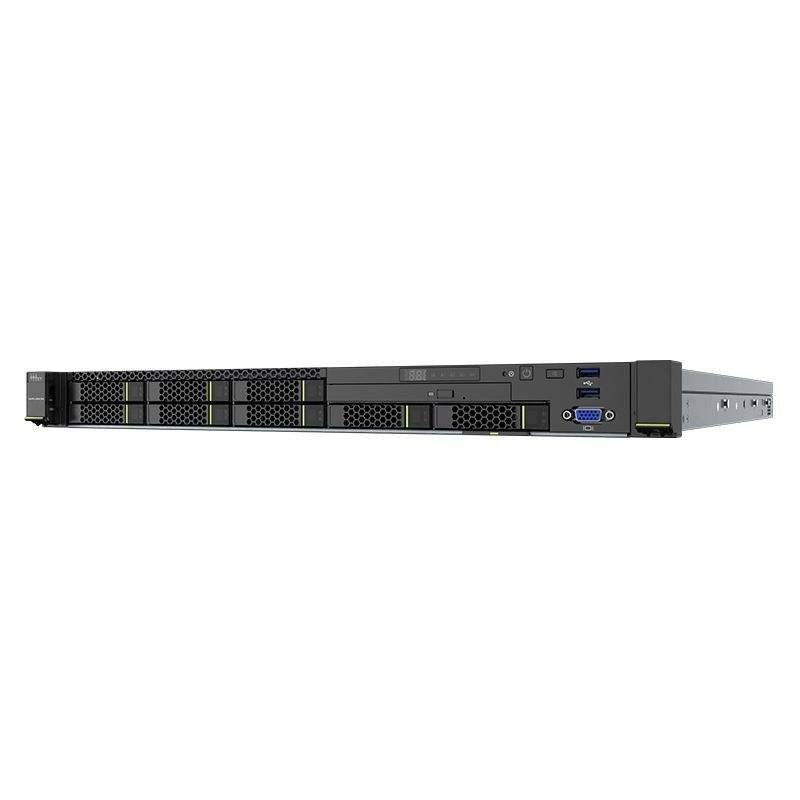

FusionServer 1288H V5 1U rack server
The FusionServer 1288H V5 is a 1U 2-socket rack server that is suitable for high-density workloads such as cloud computing, virtualization, high-performance computing (HPC), and big data processing Deployment to improve data center space utilization. The 1288H V6 can be configured with 2 Intel ® Xeon ® Scalable processors, 32 Wisers DDR4 RAM, and 4*3.5" in 1U space.or 10 x 2.5" local storage resources (configurable with 4/10 NVMe SSD drives). Integrate DEMT intelligent power management, FDM intelligent fault management and other patented technologies, optional With FusionDirector lifecycle management software, it can effectively reduce operating costs and improve return on investment.
The FusionServer 1288H V5 is a 1U 2-socket rack server that is suitable for high-density workloads such as cloud computing, virtualization, high-performance computing (HPC), and big data processing Deployment to improve data center space utilization. The 1288H V6 can be configured with 2 Intel ® Xeon ® Scalable processors, 32 Wisers DDR4 RAM, and 4*3.5" in 1U space.or 10 x 2.5" local storage resources (configurable with 4/10 NVMe SSD drives). Integrate DEMT intelligent power management, FDM intelligent fault management and other patented technologies, optional With FusionDirector lifecycle management software, it can effectively reduce operating costs and improve return on investment.
Product Description
Product Paramenters
|
Server Model
|
FusionServer 1288H V6
|
|
Form Factor
|
1U Rack Server
|
|
Processors
|
One or two 3rd Gen Intel® Xeon® Scalable Ice Lake processors (8300/6300/5300/4300 series), thermal design power (TDP) up to 270 W
|
|
Drive bays |
Supports various drive configurations and hot swappable:
• 10 x 2.5-inch drives (6–10 NVMe SSDs and 0–4 SAS/SATA drives, with a total number of 10 or less) • 10 x 2.5-inch drives (2–4 NVMe SSDs and 6–8 SAS/SATA drives, with a total number of 10 or less) • 10 x 2.5-inch SAS/SATA/SSD drives • 8 x 2.5-inch SAS/SATA/SSD drives • 4 x 3.5-inch SAS/SATA/SSD drives Supports flash storage: • Dual M.2 SSDs |
|
RAM |
32 DDR4 DIMMs, up to 3,200 MT/s; 16 Optane™ PMem 200 series, up to 3,200 MT/s
|
|
Storage controllers
|
SSupports RAID 0, 1, 10, 5, 50, 6, or 60, optional supercapacitor for cache data power failure protection, RAID level migration,
drive roaming, self-diagnosis, and remote web-based configuration |
|
I/O & Ports
|
LOM: 2 x 10GE + 2 x GE ports
|
|
Rail
|
Rail
|
|
Height X Width X Depth
|
Chassis with 3.5-inch drives: 43.5 mm x 447 mm x 790 mm
Chassis with 2.5-inch drives: 43.5 mm x 447 mm x 790 mm |
|
Power Supply Units |
• 900 W AC Platinum/Titanium PSUs (input: 100 V to 240 V AC, or 192 V to 288 V DC)
• 1500 W AC Platinum PSUs 1000 W (input: 100 V to 127 V AC) 1500 W (input: 200 V to 240 V AC, or 192 V to 288 V DC) • 1500 W 380 V HVDC PSUs (input: 260 V to 400 V DC) • 1200 W -48 V to -60 V DC PSUs (input: -38.4 V to -72 V DC) • 2000 W AC Platinum PSUs 1800 W (input: 200 V to 220 V AC, or 192 V to 200 V DC) 2000 W (input: 220 V to 240 V AC, or 200 V to 288 V DC) |
