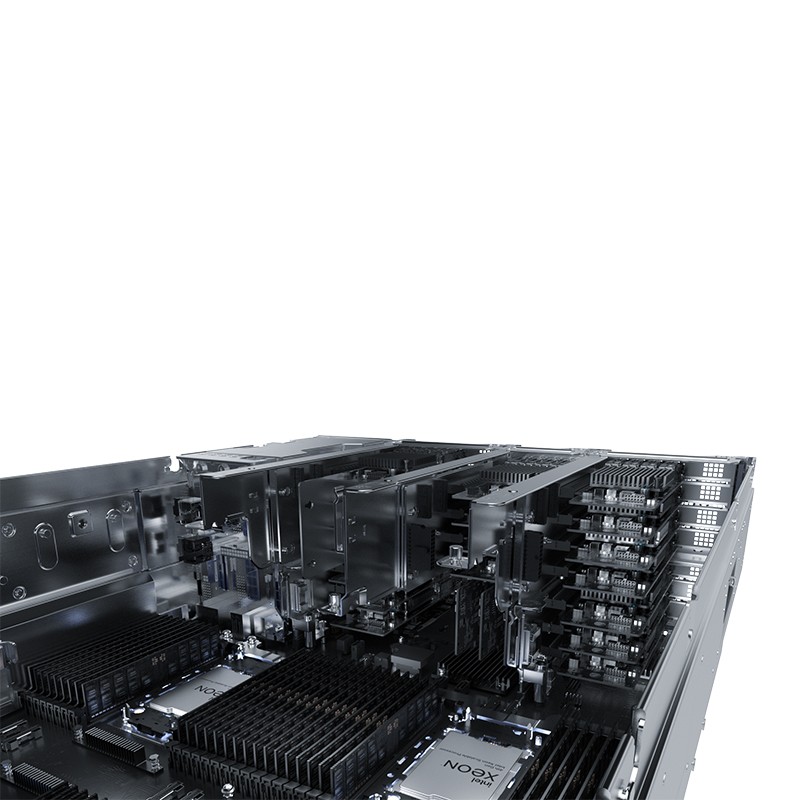

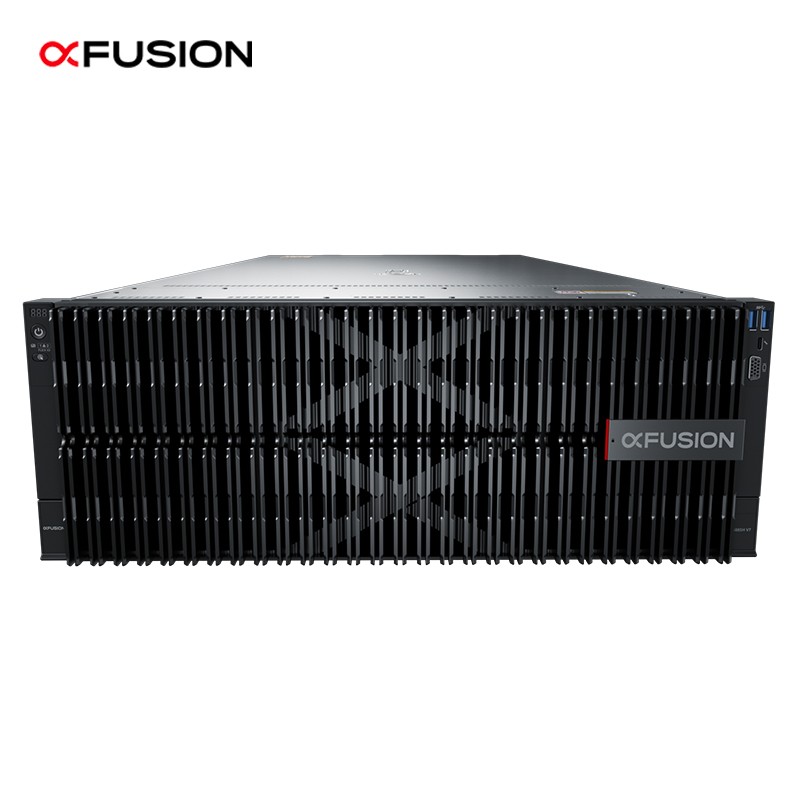

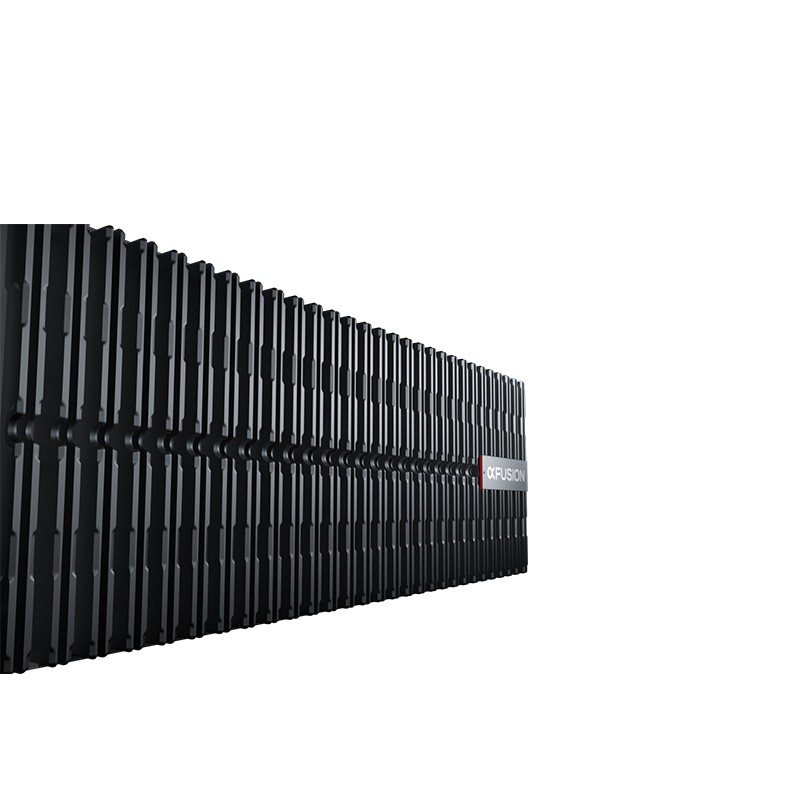

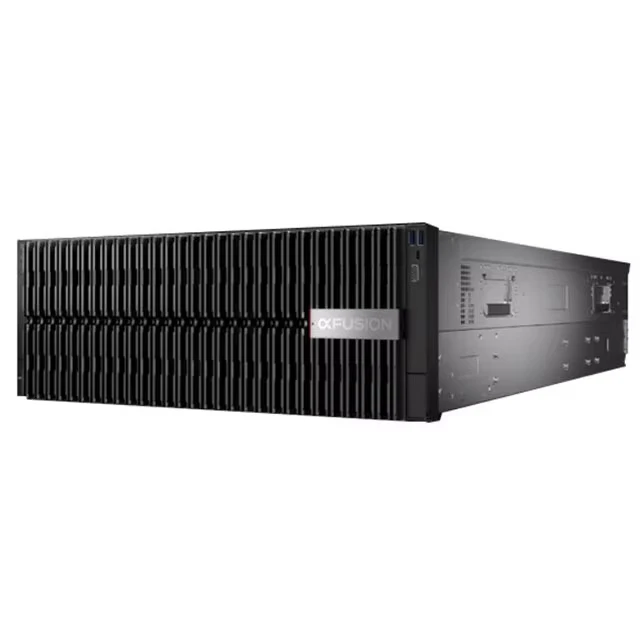

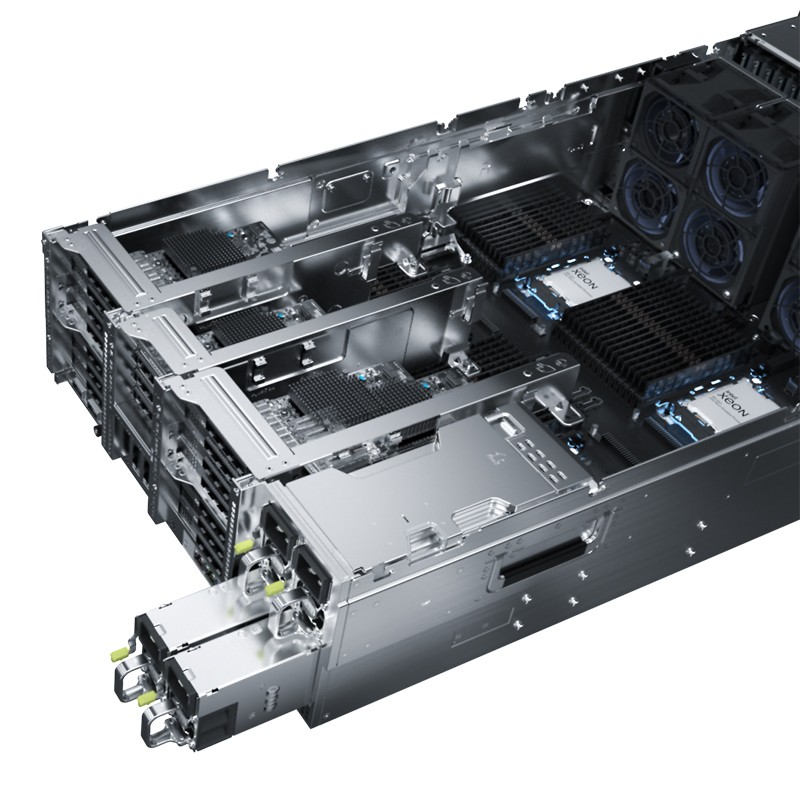

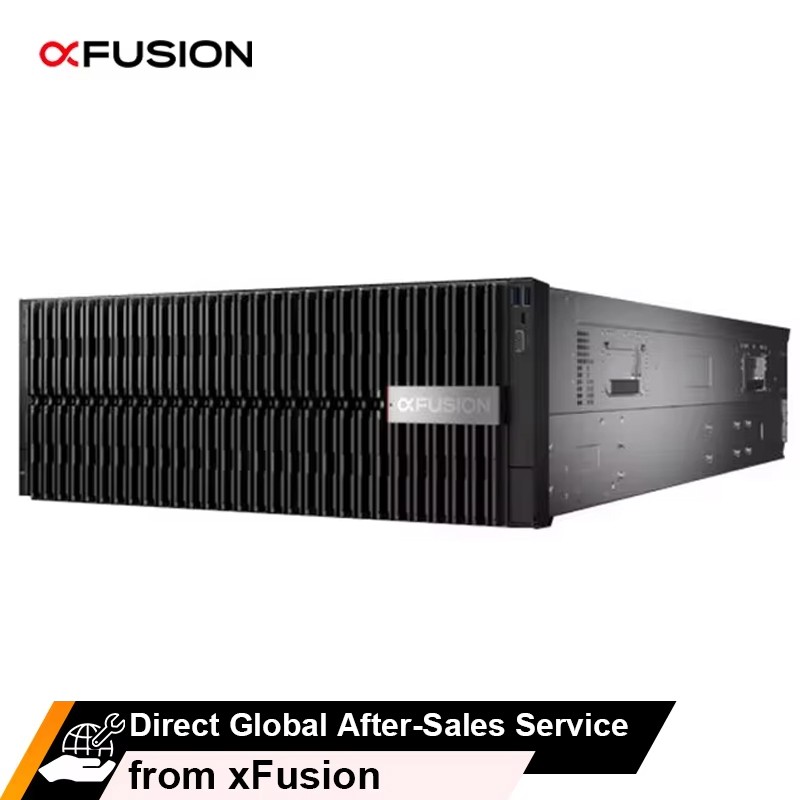

FusionServer 5885H V7 4U rack server
·FusionSever5885HV7 server (hereinafter referred to as 5885HV7) is a widely used 4U 4 rack server designed by the company for 1DC(Internet data center), cloud computing, enterprise market and telecom business applications.
. The 5885H V7 is suitable for various application requirements such as database, cloud computing, virtualization, and memory computing.
·5885H V7 has the advantages of high performance computing, large capacity storage, low energy consumption, strong expansion ability, high reliability, easy management, easy deployment and so on
·FusionSever5885HV7 server (hereinafter referred to as 5885HV7) is a widely used 4U 4 rack server designed by the company for 1DC(Internet data center), cloud computing, enterprise market and telecom business applications.
. The 5885H V7 is suitable for various application requirements such as database, cloud computing, virtualization, and memory computing.
·5885H V7 has the advantages of high performance computing, large capacity storage, low energy consumption, strong expansion ability, high reliability, easy management, easy deployment and so on
Product Description
Product Paramenters
|
Server Model
|
FusionServer 5885H V7
|
|
Form Factor
|
4U rack server
|
|
Processors
|
2 or 4 x 4th Gen Intel® Xeon® Scalable processors (Sapphire Rapids) with TDP up to 350 W per processor
|
|

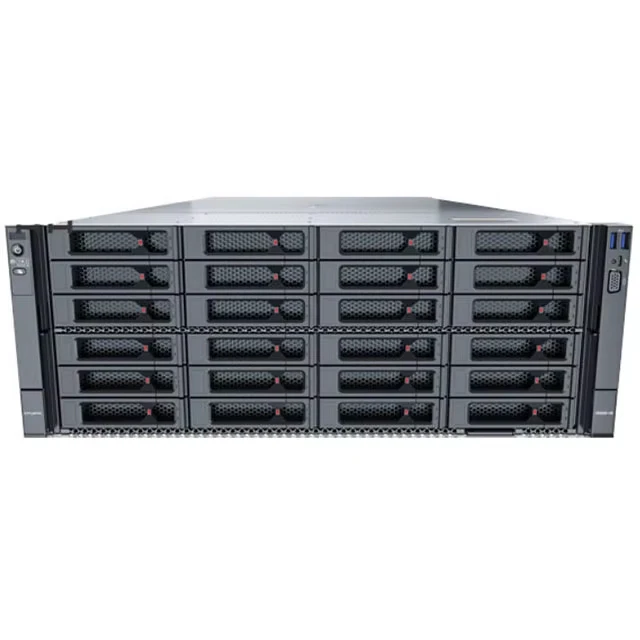

Local Storage |
Hot-swappable drive configurations:
• 8, 24, 25, or 50 x front 2.5″ SAS/SATA drives • 4 x front 2.5″ SAS/SATA drives and 8 x NVMe SSDs • 24 x front NVMe SSDs • 25 x front 2.5″ SAS/SATA drives and 24 x front NVMe SSDs • 36 x front E1.S SSDs • Up to 52 x 2.5″ drives Flash storage: • 2 x M.2 SSDs, supporting hardware RAID |
|

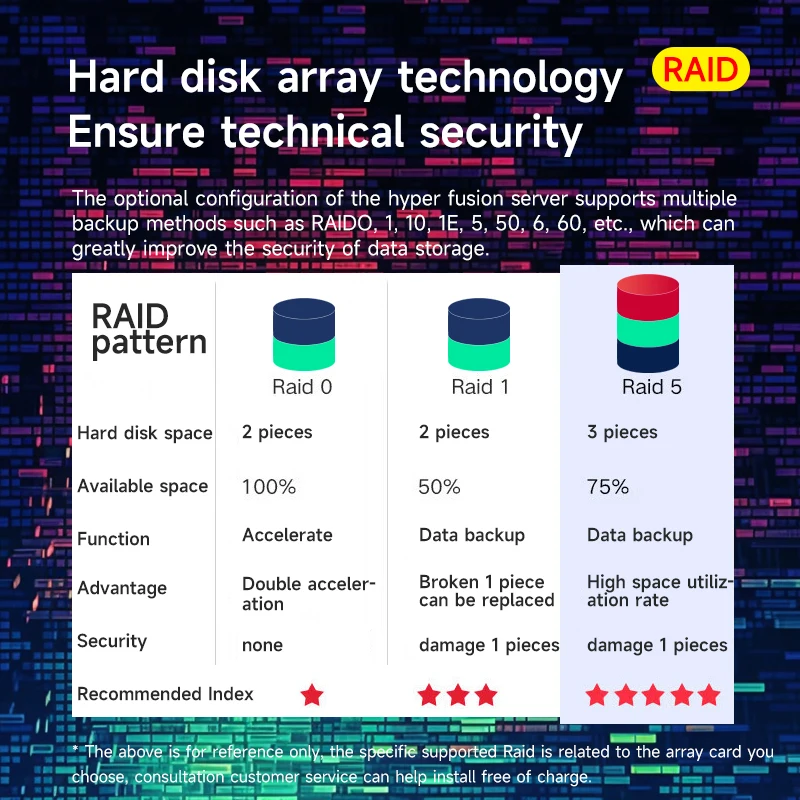

RAID Support
|
RAID 0, 1, 10, 1E, 5, 50, 6, or 60; supercapacitors for cache data protection from power failures; RAID level migration, drive
roaming, self-diagnosis, and remote web-based configuration |
|

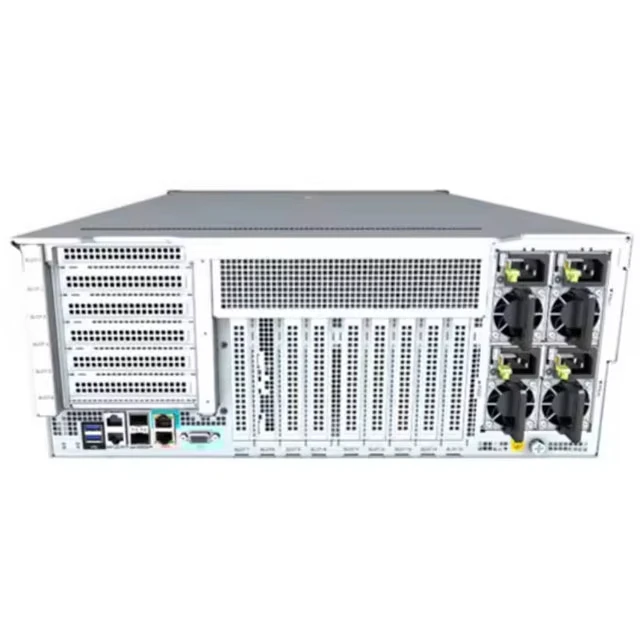

PCIe Expansion |
Up to 22 x PCIe slots, including 1 x FlexIO slot dedicated for the OCP 3.0 NIC and 21 x standard PCIe slots
|
|
GPU accelerator card
|
4 x dual-width GPU cards
14 x single-width GPU cards |
|
Operating Systems
|
FusionOS, Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle, Ubuntu,
Debian, and openEuler . |
|
Fan Modules
|
8 x hot-swappable counter-rotating fan modules in N+1 redundancy
|
|
Certifications
|
CE, UL, CCC, FCC, VCCI, RoHS, etc
|
|
Security Features |
Power-on password, administrator password, Trusted Platform Module (TPM) 2.0, security panel, secure boot, and chassis cover
opening detection |
|
Operating Temperature
|
5°C to 45°C (41°F to 113°F), compliant with ASHRAE Classes A3 and A4
|
|
Dimensions (H x W x D) |
Chassis with 2.5″ drives: 175 mm x 447 mm x 898 mm (6.89 in. x 17.60 in. x 35.35 in.)
|
|

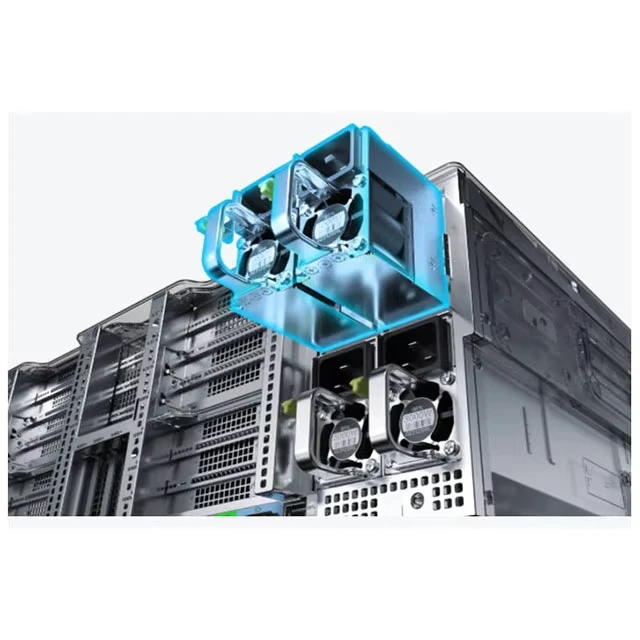

Power Supply Units |
4 x hot-swappable PSUs in 2+2 redundancy mode:
• 900 W AC Platinum/Titanium PSUs (input: 100 V to 240 V AC, or 192 V to 288 V DC) • 1500 W AC Platinum PSUs 1000 W (input: 100 V to 127 V AC) 1500 W (input: 200 V to 240 V AC, or 192 V to 288 V DC) • 2000 W AC Titanium PSUs 1800 W (input: 200 V to 220 V AC) 2000 W (input: 200 V to 230 V AC) 2150 W (input: 230 V to 240 V AC) • 3000 W AC Titanium PSUs 2500 W (input: 200 V to 220 V AC) 2900 W (input: 220 V to 230 V AC) 3000 W (input: 230 V to 240 V AC) • 1200 W –48 V to –60 V DC PSUs (input: –38.4 V to –72 V DC) • 1500 W 380 V HVDC PSUs (input: 260 V to 400 V DC) |
