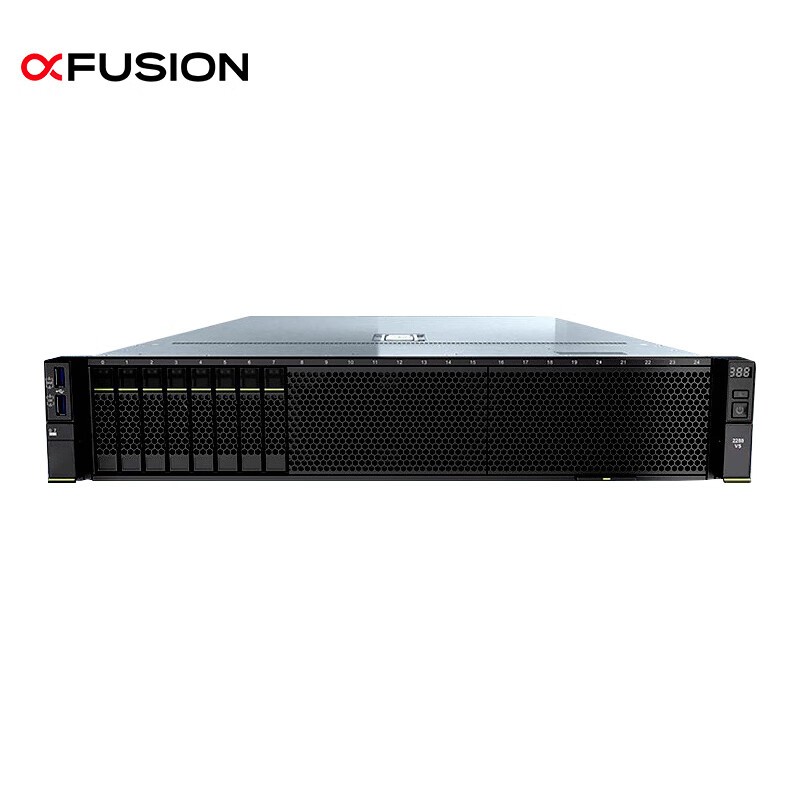

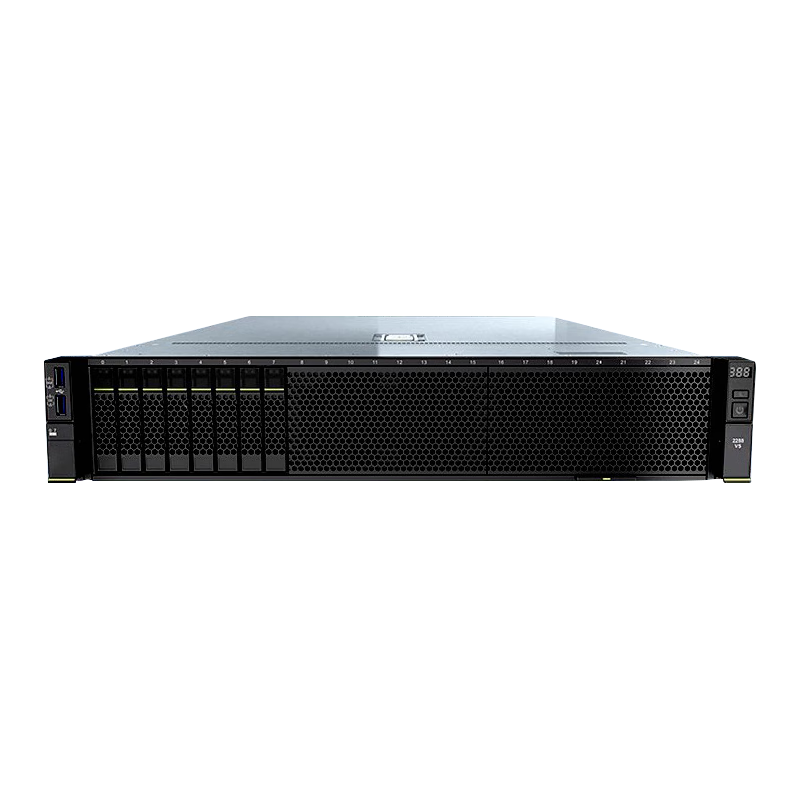

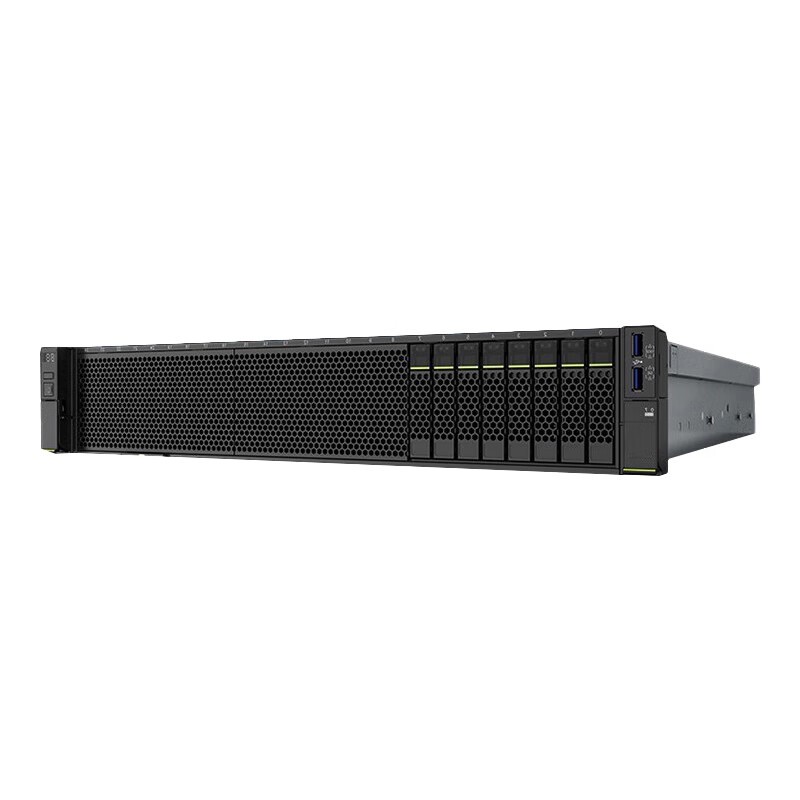

FusionServer 2288H V5 2U rack server

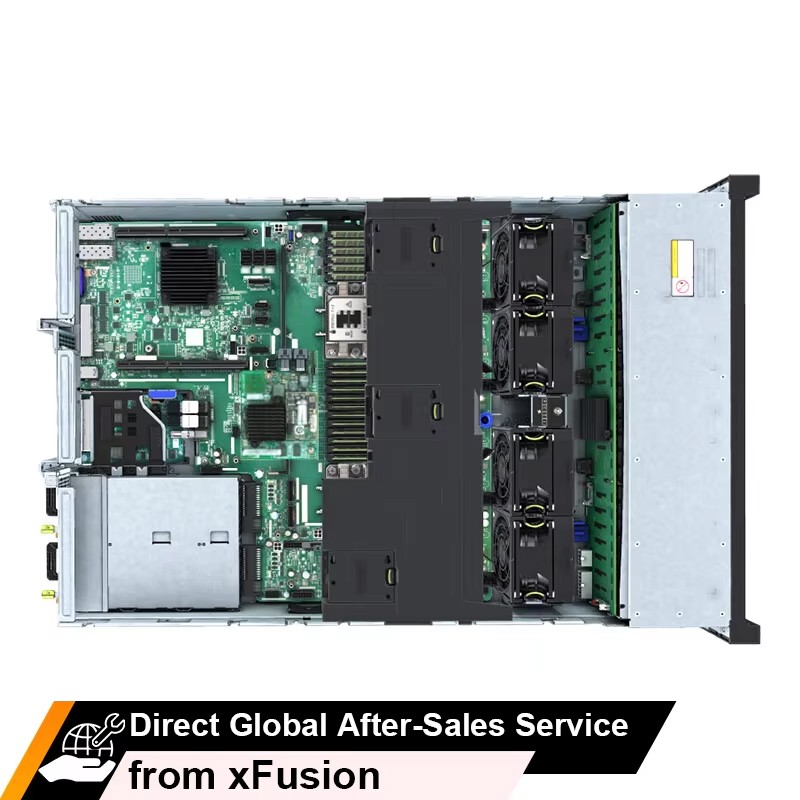

The FusionServer 2288H V5 is a 2U 2-socket rack server with flexible configurations, which can be widely used for cloud computing, virtualization, database, and big data workloads The 2288H V5 can be configured with 2-socket Intel ® Xeon ® Scalable processors, 24 ports of DDR4 memory, 10 PCIe expansion slots, and supports large-capacity local storage resources.

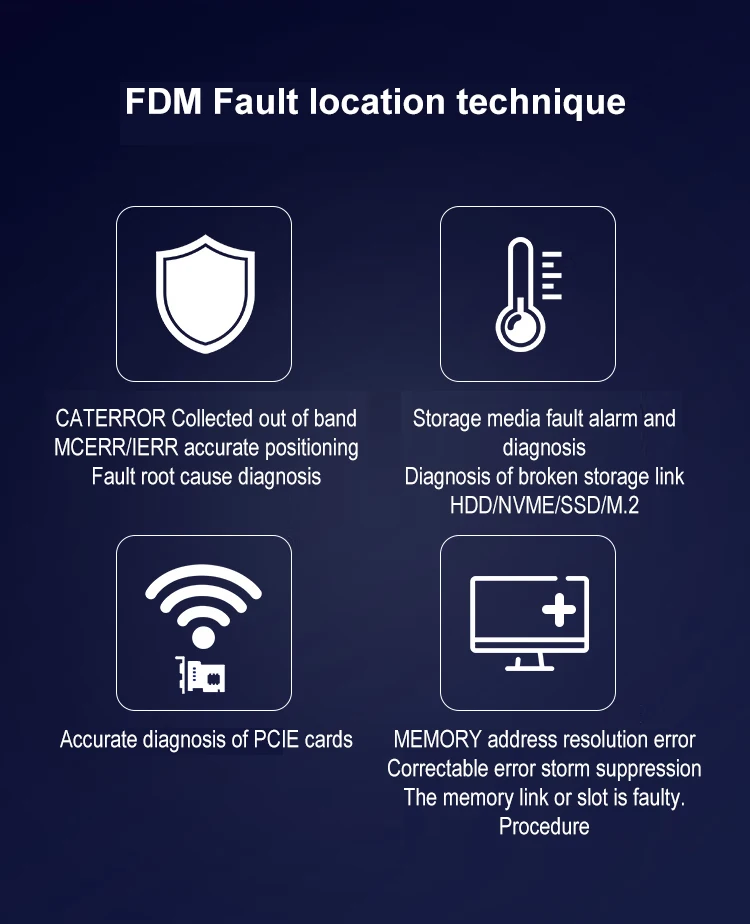

It integrates patented technologies such as DEMT, intelligent power
consumption management, FDM intelligent fault management, and optional FusionDirector full lifecycle management software, which can effectively reduce operations cost, improve return on investment.
The FusionServer 2288H V5 is a 2U 2-socket rack server with flexible configurations, which can be widely used for cloud computing, virtualization, database, and big data workloads The 2288H V5 can be configured with 2-socket Intel ® Xeon ® Scalable processors, 24 ports of DDR4 memory, 10 PCIe expansion slots, and supports large-capacity local storage resources.
It integrates patented technologies such as DEMT, intelligent power
consumption management, FDM intelligent fault management, and optional FusionDirector full lifecycle management software, which can effectively reduce operations cost, improve return on investment.
Product Description
Specification
|
Server Model
|
FusionServer 2288H V5
|
|
Form Factor
|
2U, 2-socket rack server
|
|
Processors |
1/2 x 1st Gen Intel ® Xeon ® Scalable processors 3100/4100/5100/6100/8100 series, up to 205W
1/2 x 2nd Gen Intel ® Xeon ® Scalable processors 3200/4200/5200/6200/8200 series, up to 205W |
|
Local storage |

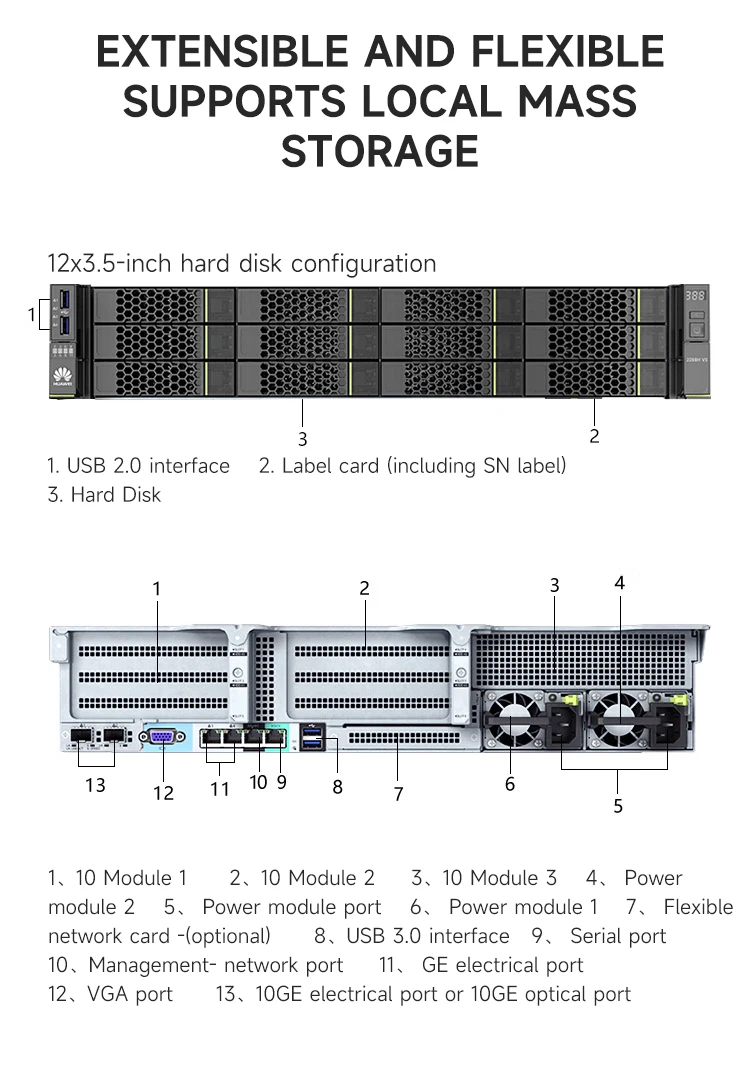

It supports a variety of different hard disk configurations, and the hard disk supports hot swapping:
• Configurable with 8/20/24/25/31 x 2.5-inch SAS/SATA/SSD hard drives • Configurable with 12/16/20 x 3.5-inch SAS/SATA hard drives • Configurable with 4/8/12/24/28 NVMe SSD hard drives Support Flash storage: • Dual M.2 SSDs |
|
RAID support
|
support RAID 0, 1, 10, 1E, 5, 50, 6, 60, etc., support Cache supercapacitor protection, and provide RAID level migration, disk
roaming, self-diagnosis, web remote setting and other functions |
|
Internet
|
On-board NIC (NIC): 2 x 10GE ports and 2 x GE interfaces
Flexible card: 2 x GE or 4 x GE or 2 x 10 GE or 2 x 25 GE or 1/2 x 56G FDR IB interface |
|
PCIe extensions
|
Up to 10 PCIe 3.0 expansion slots, including 1 PCIe expansion card for RAID cards and 1 flexible LOM card
|
|
PCIe Expansion
|
Up to 10 PCIe 3.0 expansion slots, including 1 PCIe expansion card for RAID cards and 1 flexible LOM card
|
|
Fan Modules
|
4 hot-swappable fan modules with optional N+1 redundancy
|
|
Dimensions (HxWxD)
|
3.5-inch hard disk chassis: 86.1mm x 447 mm x 748 mm
2.5-inch disk chassis: 86.1mm x 447 mm x 708 mm |
|
Power Supply Units |

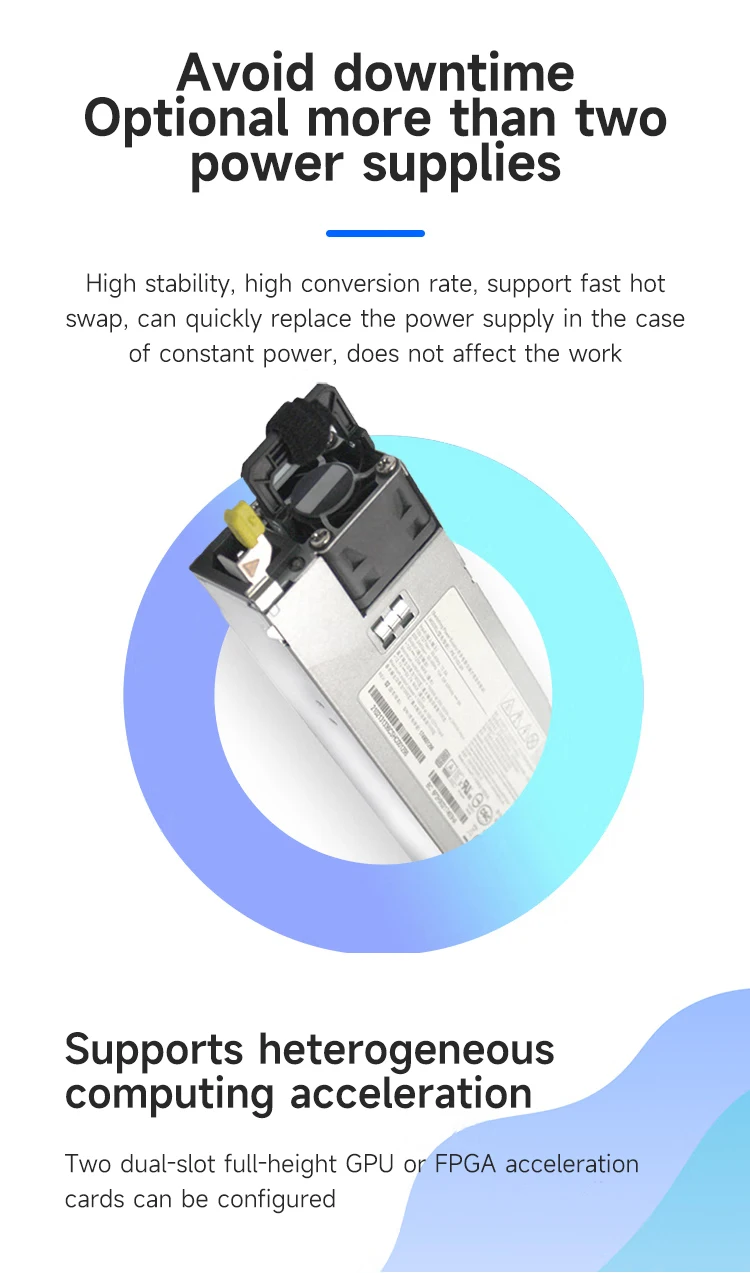

2 hot-swappable PSUs with support for 1+1 redundancy and the following configuration options:
550W AC Platinum PSUs 900W AC Platinum/Titanium PSUs 1,500W AC Platinum PSUs 1,500W 380V HVDC PSUs 1,200W -48V to -60V DC PSUs |
