Product Paramenters
|
Server Model
|
Dell PowerEdge R730 R740 R750 R760XS XD
|
|
Processor
|
Up to two 5th generation Intel Xeon scalable processors (up to 28 cores) and 4th generation Intel Xeon scalable processors (up to 32 cores per processor)
|
|
Memory
|
Up to 16 DDR5RDIMMs (up to 1TB supported) NVDIMM No DIMM Speed:
up to 4800 MT/S |
|
Memory controller
|
•Internal controller :PERC H965, PERCH755, PERC H755N, PERCH355, HBA355i
•Internal Boot :Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 1, 2 xM.2 NVMe SSD or USB •External HBA(non-RAID):HBA355e; Software RAID:S160 |
|
GPU options
|
2x75 WSWV, LP
|
|
PCIe
|
• Single CPU configuration: up to 4 PCIe slots (2x8 5.0, 1x16 4.0, 1x8 4.0) •Dual CPU configuration: up to 6 PCIe slots (2 x16 5.0,2 x16 4.0, 3 x8 4.0)
|
|
Hot-swappable redundant power supplies
|
• 1800 W Titanium grade 200-240 VAC or 240 VDC
• 1400 W Platinum class 100-240 VAC or 240 VDC • 1400 W Titanium grade 277 VAC or HVDC (HVDC stands for high voltage DC with 336V DC) • 1100 W Titanium grade 100-240 VAC or 240 VDC • 1100 W -(48V — 60V) DC • 800W Platinum grade 100-240 VAC or 240 VDC 700 W Titanium grade 200-240 VAC or 240 VDC • 600 W Platinum grade 100-240 VAC or 240 VDC |
|
Cooling option
|
• Air cooling
|
|
Fan
|
Standard (STD) fans/High Performance Silver (HPR) fans/High Performance Gold (VHP) fans with up to 6 hot swappable fans
|
|
Size and weight
|
• Height - 86.8 mm (3.41 in)
• Width - 482 mm (18.97 in) Depth - 707.78 mm (27.85 in) - without baffles 721.62 mm (28.4 in.) -with baffle plate • Weight - maximum 28.6 kg (63.0 lb) |
|
Contour specification
|
2U rack server
|
|
Embedded management
|
• iDRAC9
• iDRAC Direct • iDRAC RESTful API with Redfish • iDRAC Service Module • Quick Sync 2 wireless module |
|
Baffle plate
|
Optional LCD screen or safety shield
|
|
Mobility
|
OpenManage Mobile
|
|
Embedded NIC
|
2 x 1 GbE LOM
|
|
Warranty
|
3 years
|
Products Description

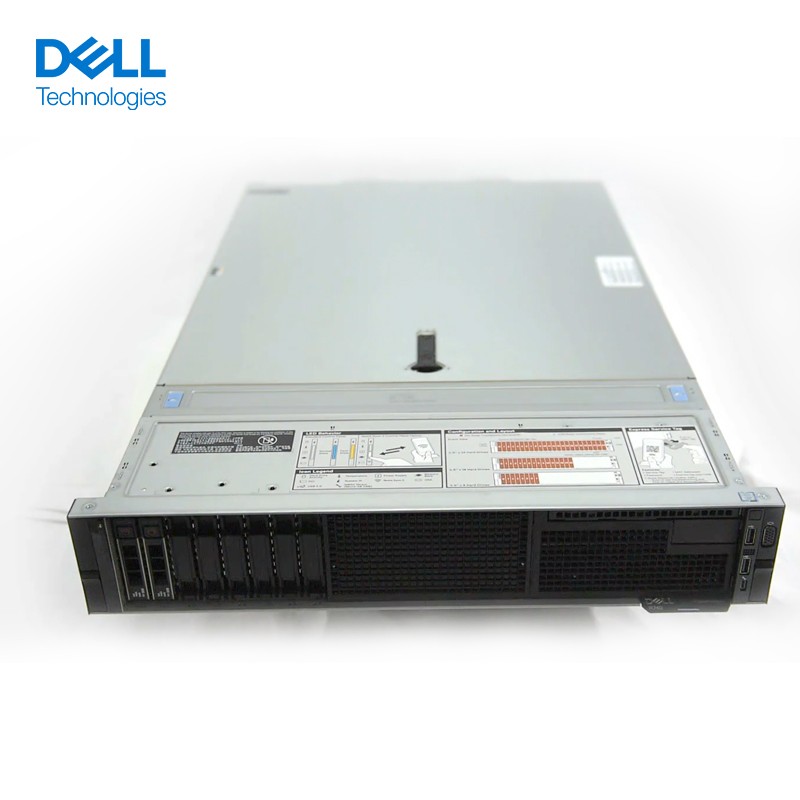

D ell PowerEdge R760XS Server
The new Dell PowerEdge R760xs is a 2U dual rack server. Buy this purpose-built 2U system for the right scalability and size Storage capacity. Our focus is on delivering new technologies to support common applications and workloads used in today's enterprises, including virtual desktop infrastructure (VDI), virtual machines(VM) and software-defined Storage (SDS). All of this is delivered in a carefully designed platform that will deliver balanced computing that fits your current infrastructure.
Product Display
Application Scenario
Company Profile
Company profile
As a leading integrated IT solutions provider, Shenzhen Tiansheng Cloud Technology Co., Ltd combines cutting edge in house manufacturing, dedicated R&D facilities, and a robust global distribution network to deliver comprehensive end to end infrastructure services. With a team of over 300 highly skilled professionals, including more than 150 certified engineers holding top tier certifications, we bring 15 years of proven expertise in designing, deploying, and maintaining mission-critical IT environments for enterprises worldwide. Our vertically integrated approach ensures seamless quality control from component sourcing to final implementation.
As authorized partners for Huawei, xFusion, Dell, HPE, and Lenovo, we provide:
Computing servers
Network storage
Network switches
CPU, RAM, HARD DRIVES, and other accessories
As authorized partners for Huawei, xFusion, Dell, HPE, and Lenovo, we provide:
Computing servers
Network storage
Network switches
CPU, RAM, HARD DRIVES, and other accessories
Exhibition
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
