Product Paramenters
|
Server Model
|

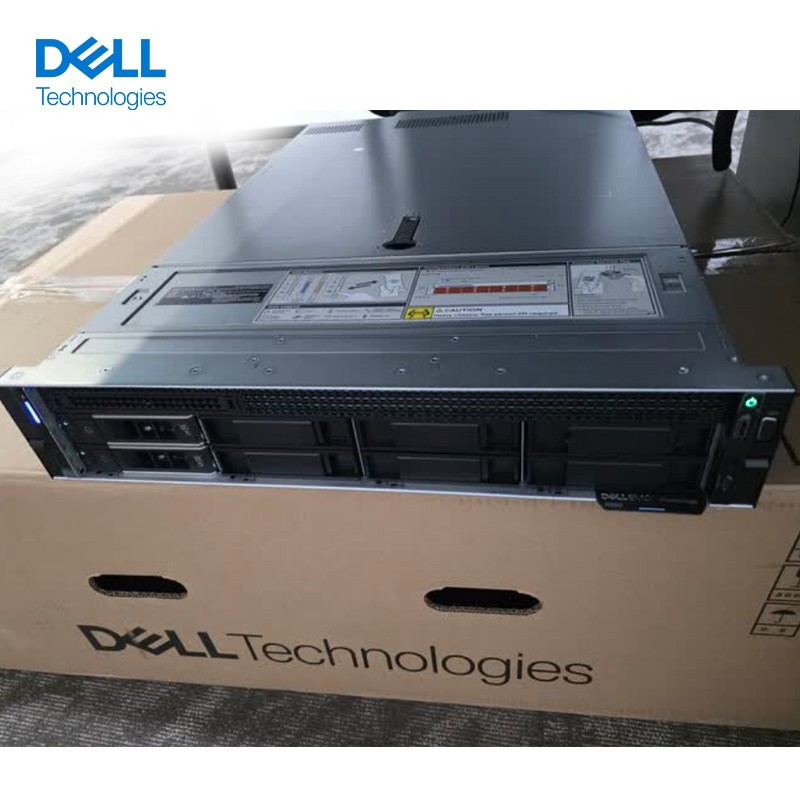

Dell Poweredge R760 Server
|
|
Processor
|
Up to two 4th Generation Intel Xeon Scalable processor with up to 56 cores per processor and with optional Intel® QuickAssist
Technology |
|
Memory
|
• 32 DDR5 DIMM slots, supports RDIMM 8 TB max, speeds up to 4800 MT/s
• Supports registered ECC DDR5 DIMMs only |
|
Storage controllers
|
• Internal Controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i
• Internal Boot: Boot Optimized Storage Subsystem(BOSS-N1): HWRAID 2 x M.2 NVMe SSDs or USB • External HBA (non-RAID): HBA355e • Software RAID: S160 |
|
Drive Bays
|
Front bays:
• Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 240 TB • Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB • Up to16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB • Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.64 TB Rear bays: • Up to2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB • Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB |
|
Power supplies
|
• 2800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant
• 2400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant • 1800W Titanium 200—240 VAC or 240 HVDC, hot swap redundant • 1400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant • 1100 WTitanium 100—240 VAC or 240 HVDC, hot swap redundant • 1100 W LVDC -48 — -60 VDC, hot swap redundant • 800 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant • 700 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant |
|
Cooling Options
|
Air cooling
• Optional Direct Liquid Cooling (DLC) Note: DLC is a rack solution and requires rack manifolds and a cooling distribution unit (CDU) to operate |
|
Fans
|
• Standard (STD) fans/High performance Silver (HPR) fans/ High performance Gold (VHP) fans • Up to 6 hot plug fans
|
|
Dimensions
|
• Height – 86.8 mm (3.41 inches) • Width – 482 mm (18.97 inches)
• Depth – 772.13 mm (30.39 inches) with bezel 758.29 mm (29.85 inches) without bezel |
|
Bezel
|
Optional LCD bezel or security bezel
|
|
Open Manage Integrations
|
• BMC Truesight
• Microsoft System Center • OpenManage Integration with ServiceNow • Red Hat Ansible Modules • Terraform Providers • VMware vCenter and vRealize Operations Manager |
|
Security
|
• Cryptographically signed firmware • Data at Rest Encryption (SEDs with local or external key mgmt)
• Secure Boot • Secure Erase • Secured Component Verification (Hardware integrity check) • Silicon Root of Trust • System Lockdown (requires iDRAC9 Enterprise or Datacenter) • TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
|
Embedded NIC
|
2 x 1 GbE LOM card (optional)
|
|
Network options
|
1 x OCP card 3.0 (optional) Note: The system allows either LOM card or an OCP card or both to be installed in the system.
|
|
GPU Options
|
Up to 2 x 350 W DW and 6 x 75 W SW
|
|
Warranty
|
3 years
|
Products Description

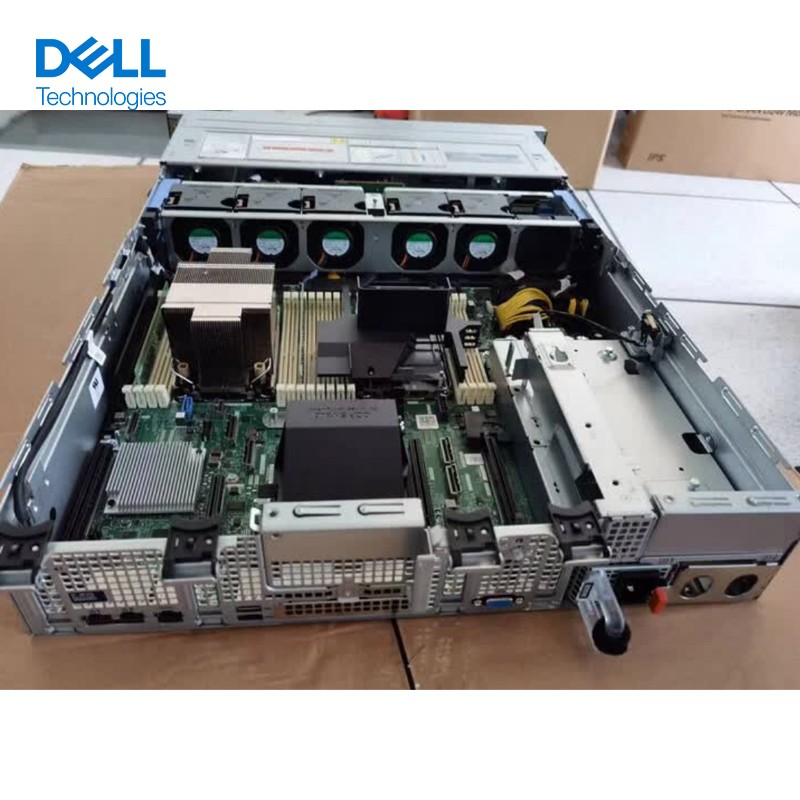

D ell PowerEdge R760 rack server
Provides performance and versatility as needed to address your most demanding applications.
The new De ll PowerEdge R760 is a 2U, two-socket rack server. Gain the performance you need with this full-featured enterprise
server, designed to optimize even the most demanding workloads like Artificial Intelligence and Machine Learning.
The new De ll PowerEdge R760 is a 2U, two-socket rack server. Gain the performance you need with this full-featured enterprise
server, designed to optimize even the most demanding workloads like Artificial Intelligence and Machine Learning.

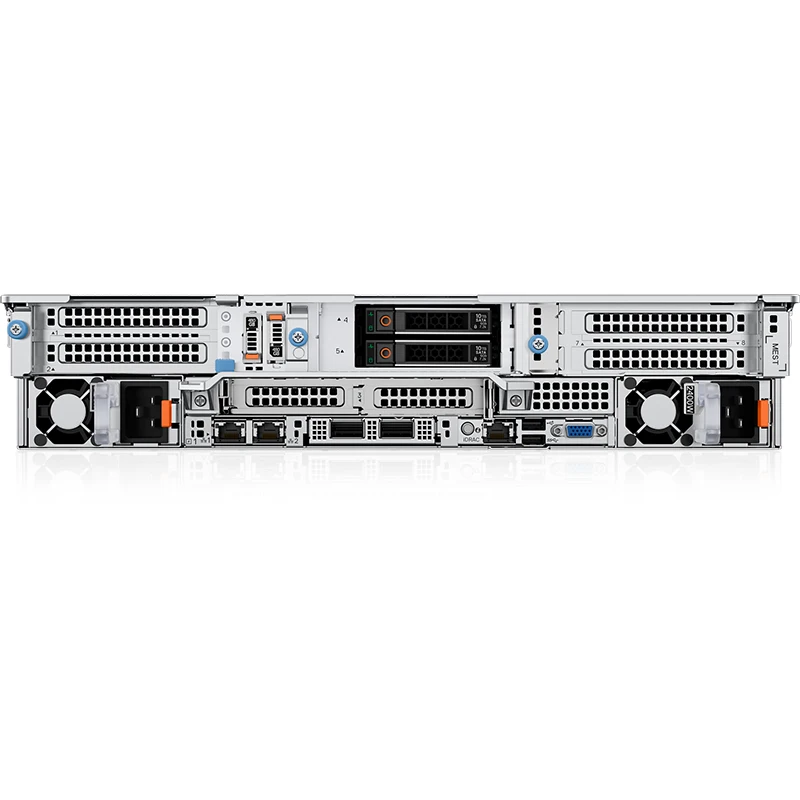

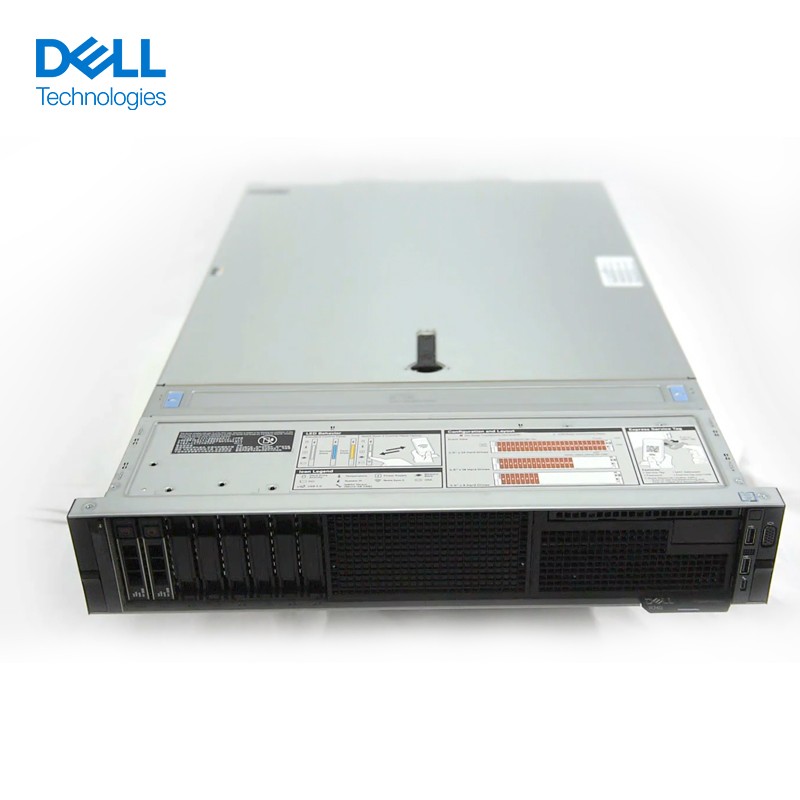

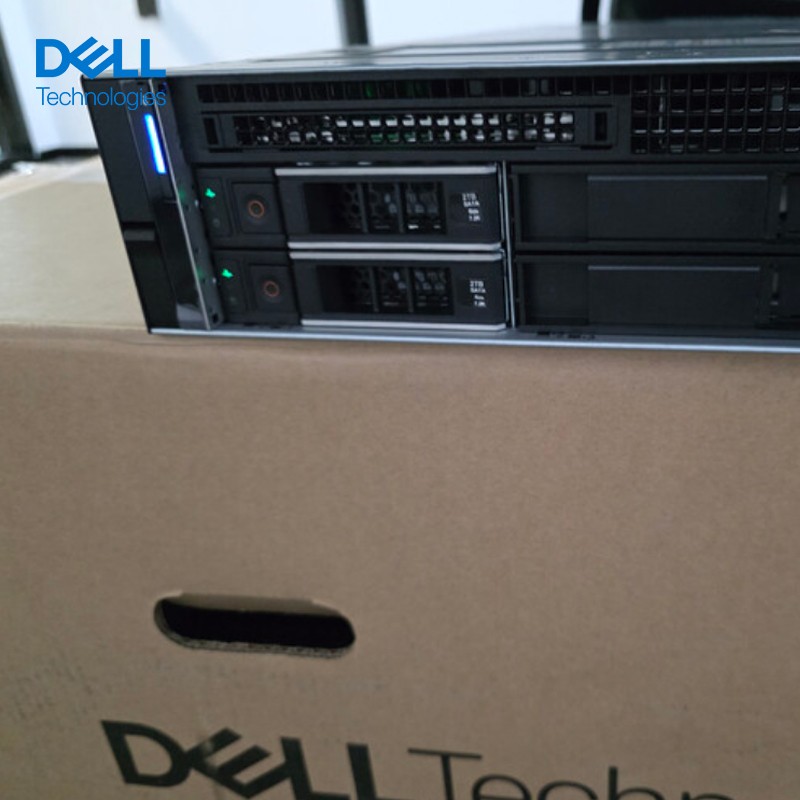

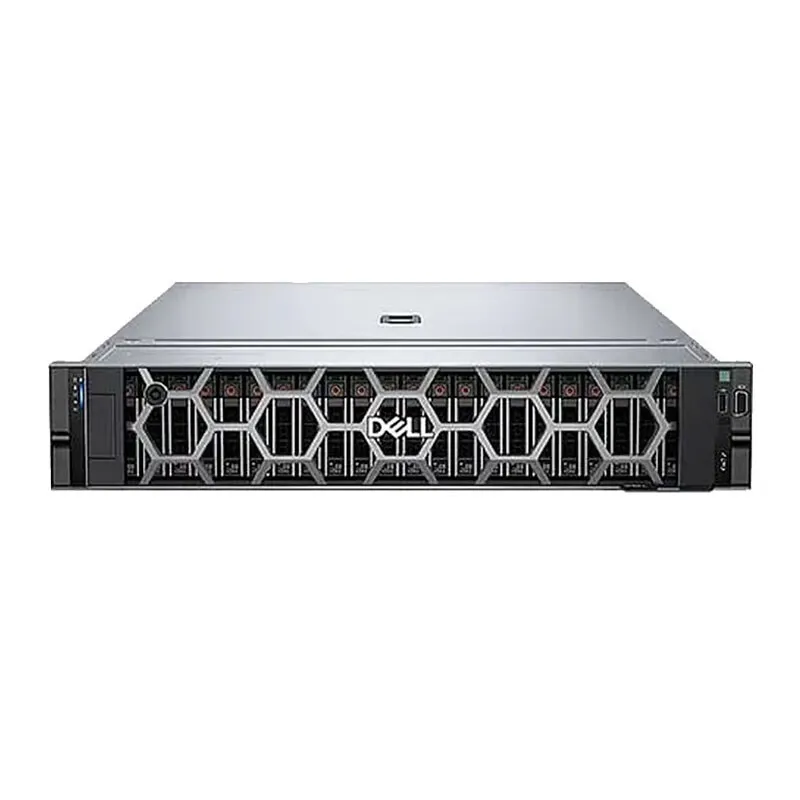

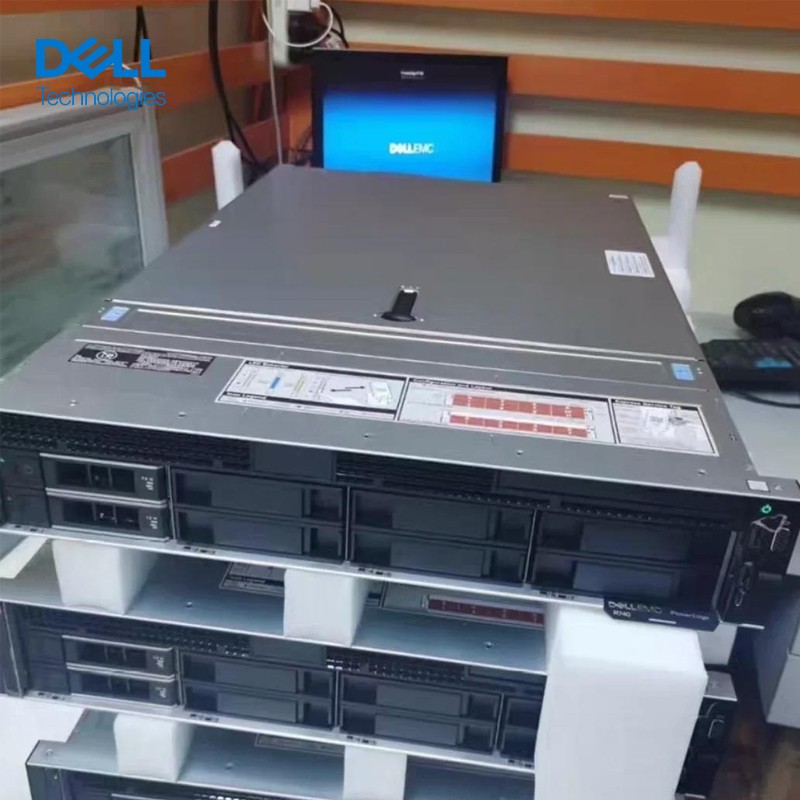

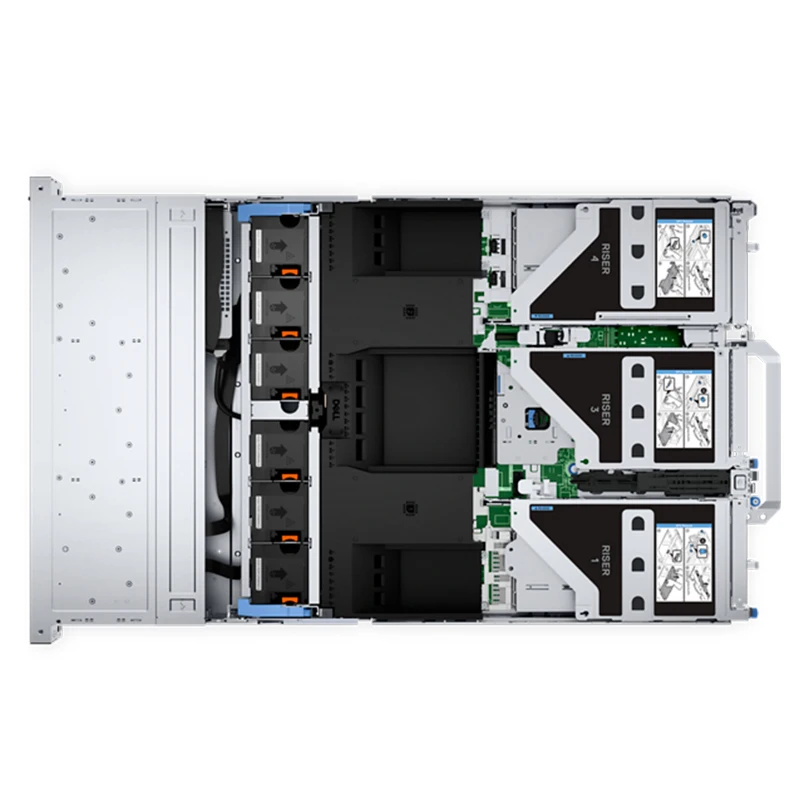

Product Display

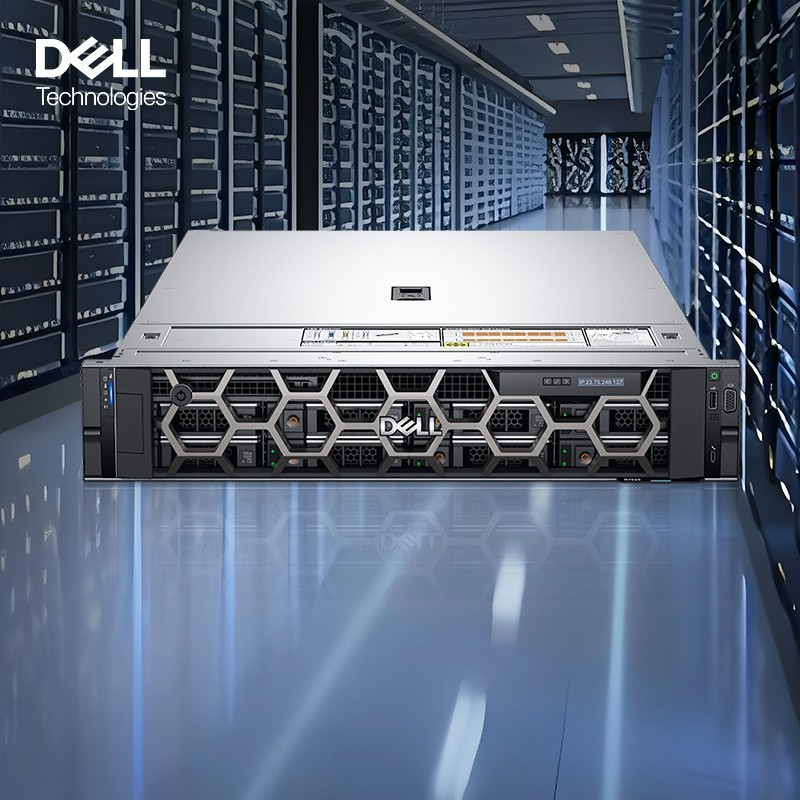

Application Scenario
