Mozhen International Co., Ltd.
Product Paramenters
|
Feature
|
Technical Specifications
|
|
|
|
||
|
Processor
|
Up to two 3rd Generation Intel Xeon Scalable processors, with up to 40 cores per processor
|
|
|
|
||
|
Memory |
• 32 DDR4 DIMM slots, supports RDIMM 2 TB max or LRDIMM 8 TB max, speeds up to 3200 MT/s • Up to 16 Intel Persistent Memory 200
series (BPS) slots, 8 TB max • Supports registered ECC DDR4 DIMMs only |
|
|
|
||
|
Storage controllers |
• Internal controllers: PERC H745, HBA355I, S150, H345, H755, H755N • Boot Optimized Storage Subsystem (BOSS-S2): HW RAID 2 x M.2
SSDs 240 GB or 480 GB • Boot Optimized Storage Subsystem (BOSS-S1) HW RAID 2 x M.2 SSDs 240 GB or 480 GB • External PERC (RAID): PERC H840, HBA355E |
|
|
|
||
|
Drive Bays |

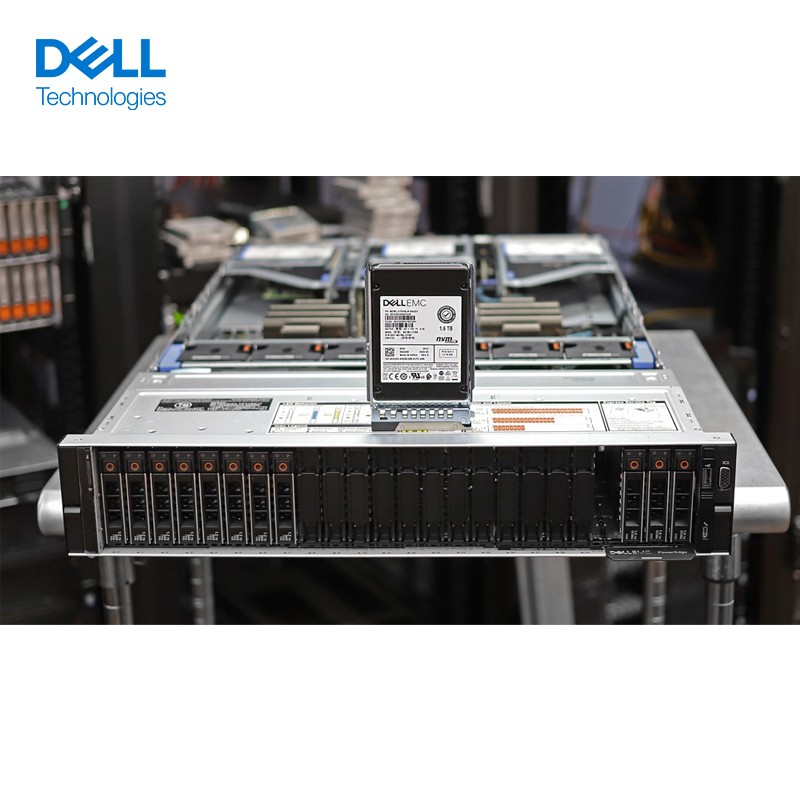

Front bays: • Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 192 TB • Up to 8 x 2.5-inch NVMe (SSD) max 122.88 TB
• Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB • Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.84 TB Rear bays: • Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB • Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB |
|
|
|
||
|
Power Supplies |
• 800 W Platinum AC/240 mixed mode • 1100 W Titanium AC/240 mixed mode
• 1400 W Platinum AC/240 mixed mode • 2400 W Platinum AC/240 mixed mode |
|
|
|
||
|
Cooling Options
|
Air cooling, optional processor liquid cooling
|
|
|
|
||
|
Fans |
• Standard fan/High performance SLVR fan/High performance GOLD fan • Up to six hot plug fans
|
|
|
|
||
|
Dimensions |
• Height – 86.8 mm (3.41 inches) • Width – 482 mm (18.97 inches)
• Depth – 758.3 mm (29.85 inches) - without bezel 772.14 mm (30.39 inches) - with bezel |
|
|
|
||
|
Form Factor
|
2U rack server
|
|
|
|
||
|
Embedded Management
|
• iDRAC9 • iDRAC Service Module • iDRAC Direct• Quick Sync 2 wireless module
|
|
|
|
||
|
Bezel
|
Optional LCD bezel or security bezel
|
|
|
|
||
|
OpenManage Software |
• OpenManage Enterprise • OpenManage Power Manager plugin
• OpenManage SupportAssist plugin • OpenManage Update Manager plugin |
|
|
|
||
|
Mobility
|
OpenManage Mobile
|
|
|
|
||
|
GPU Options
|
Up to two double-width 300 W, or four single-width 150 W, or six single-width 75 W accelerators
|
|
|
|
||
|
Front Ports
|
• 1 x Dedicated iDRAC Direct micro-USB • 1 x USB 2.0 • 1 x VGA
|
|
|
|
||
|
Rear Ports
|
• 1 x USB 2.0 • 1 x Serial (optional) • 1 x USB 3.0 • 2 x RJ-45 • 1 x VGA
|
|
|
|
||
|
Internal Ports
|
1 x USB 3.0
|
|
|
|
||
|
PCIe
|
Up to 8 x PCIe Gen4 slots (up to 6 x16) with support for SNAP I/O modules
|
|
|
|
||
Products Description
Application Scenario
Company Profile
Company profile
As a leading integrated IT solutions provider, Shenzhen Tiansheng Cloud Technology Co., Ltd combines cutting edge in house manufacturing, dedicated R&D facilities, and a robust global distribution network to deliver comprehensive end to end infrastructure services. With a team of over 300 highly skilled professionals, including more than 150 certified engineers holding top tier certifications, we bring 15 years of proven expertise in designing, deploying, and maintaining mission-critical IT environments for enterprises worldwide. Our vertically integrated approach ensures seamless quality control from component sourcing to final implementation.
As authorized partners for Huawei, xFusion, Dell, HPE, and Lenovo, we provide:
Computing servers
Network storage
Network switches
CPU, RAM, HARD DRIVES, and other accessories
As authorized partners for Huawei, xFusion, Dell, HPE, and Lenovo, we provide:
Computing servers
Network storage
Network switches
CPU, RAM, HARD DRIVES, and other accessories
Exhibition
Recommend Products
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q1: When can l get the quotation?
A1: We usually quote within 24 hours after receiving your nquiry. lfyou are in a hurry, please inform us by emailor telephone. We willgive priority to your inquiry.
Q2: Why did you choose us?
The best quality and reputation are always our main concerns
A1.Our whole machine product provides a 3-year replacementwarranty.We have a complete supply chain todeal with after-salesproblems.
A2. All the memories are original brand chips, and we strictly testthe memory before each delivery.
A3.We passed SGS annual audit and Alibaba's financialinspection.
A4.We accept Alipay/credit card/bank card transfer, T/T, etc. toeliminate your concerns.
Q3: What is the minimum order quantity for an 3.0EM order?
A3: Different products have different MOQ. Let us know yourrequirements and we will try our best to meet you. Small ordersare also popular.
Q4: Your price is almost our local market price. How can l buyfrom you at this price?
A4: We have been specialized in this line for many years. We payattention to quality and believe that only goodguality can supportlong-term business. From the appearance, there is no differencebetween them, but theyhave a price gap, because they haveinternal differences, and the same price has different price levels
A1: We usually quote within 24 hours after receiving your nquiry. lfyou are in a hurry, please inform us by emailor telephone. We willgive priority to your inquiry.
Q2: Why did you choose us?
The best quality and reputation are always our main concerns
A1.Our whole machine product provides a 3-year replacementwarranty.We have a complete supply chain todeal with after-salesproblems.
A2. All the memories are original brand chips, and we strictly testthe memory before each delivery.
A3.We passed SGS annual audit and Alibaba's financialinspection.
A4.We accept Alipay/credit card/bank card transfer, T/T, etc. toeliminate your concerns.
Q3: What is the minimum order quantity for an 3.0EM order?
A3: Different products have different MOQ. Let us know yourrequirements and we will try our best to meet you. Small ordersare also popular.
Q4: Your price is almost our local market price. How can l buyfrom you at this price?
A4: We have been specialized in this line for many years. We payattention to quality and believe that only goodguality can supportlong-term business. From the appearance, there is no differencebetween them, but theyhave a price gap, because they haveinternal differences, and the same price has different price levels
