Product Paramenters
|
Feature
|
Technical Specifications
|
|
|
|
|
|
Processor
|
Up to two 3rd generation Intel Xeon scalable processors with up to 24 cores each
|
|
|
|
|
|
Memory
|
16 DDR4 DIMM slots support a maximum of 1 TB of RDIMMs and a rate of up to 2933 MT/s
|
|
|
|
|
|
Storage controllers
|
• Internal controller (RAID) : PERC H345, PERC H355, HBA355i, PERC H745, PERC H755, S150 • Internal Boot: Internal dual SD module
or Boot Optimized Storage Subsystem (BOSS-S2) : HWRAID 2x M.2 SSD or USB • External PERC (RAID) : PERC H840 • External HBA (non-RAID) : HBA355e |
|
|
|
|
|
Drive Bays
|
Front tray:
• Up to 4 x 3.5-inch SAS/SATA (HDD/SSD), up to 64 TB • Up to 8 x 2.5-inch SAS/SATA (HDD/SSD) up to 61.4 TB |
|
|
|
|
|
Power Supplies
|
• 1100 W DC / -48–(-60) V • 800 W Platinum AC 100-240 VAC or 240 VDC HVDC with hot swap redundancy
• 600 W Platinum AC 100-240 VAC or 240 VDC HVDC, hot swap redundant |
|
|
|
|
|
Cooling Options
|
Air cooling
|
|
|
|
|
|
Fans
|
• Standard (STD) fans or high-performance SLVR fans • Up to seven cold swap fans
|
|
|
|
|
|
Dimensions
|
• Height – 42.8 mm (1.7 inches)
• Width – 482 mm (18.97 inches) • Depth – 734.95 mm (28.92 inches) – without bezel 748.79 mm (29.47 inches) – with bezel |
|
|
|
|
|
Form Factor
|
1U rack server
|
|
|
|
|
|
Embedded Management
|
• iDRAC9
• iDRAC Service Module • iDRAC Direct • Quick Sync 2 wireless module |
|
|
|
|
|
Bezel
|
Optional LCD bezel or security bezel
|
|
|
|
|
|
OpenManage Software
|
• OpenManage Enterprise
• OpenManage Power Manager plugin • OpenManage SupportAssist plugin • OpenManage Update Manager plugin |
|
|
|
|
|
Mobility
|
OpenManage Mobile
|
|
|
|
|
|
Integrations and Connections
|
OpenManage Integrations
• BMC Truesight • Microsoft System Center • Red Hat Ansible Modules • VMware vCenter and vRealize Operations Manager |
OpenManage Connections
• IBM Tivoli Netcool/OMNIbus • IBM Tivoli Network Manager IP Edition • Micro Focus Operations Manager • Nagios Core • Nagios XI |
|
|
|
|
Security
|
• Cryptographically signed firmware
• Secure Boot • Secure Erase • Silicon Root of Trust • System Lockdown (requires iDRAC9 Enterprise or Datacenter) • TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
|
|
|
|
|
Embedded NIC
|
2 x 1 GbE LOM
|
|
|
|
|
|
Network Options
|
1 x OCP 3.0
|
|
|
|
|
|
GPU Options
|
inapplicability
|
|
|
|
|
|
Ports
|
Front Ports
• 1 x Dedicated iDRAC Direct micro-USB • 1 x USB 3.0 • 1 x VGA |
Rear Ports
• 1 x USB 2.0 • 1 x Serial (optional) • 1 x USB 3.0 • 2 x RJ-45 • 1 x VGA (optional for liquid cooling configuration) |
|
|
|
|
|
Internal Ports
• 1 x USB 3.0 |
|
|
|
|
|
PCIe
|
Two PCIe 4.0 slots plus PCIe Gen • 2 x16 4.0 (x16 connector) Half height, half length
• 1 x4 3.0 (x8 connector) Half height, half length |
|
|
|
|
|
Operating System and Hypervisors
|
• Canonical Ubuntu Server LTS
• Citrix Hypervisor • Microsoft Windows Server with Hyper-V • Red Hat Enterprise Linux • SUSE Linux Enterprise Server • VMware ESXi |
|
|
|
|
Products Description
Application Scenario
Company Profile
Company profile
As a leading integrated IT solutions provider, Shenzhen Tiansheng Cloud Technology Co., Ltd combines cutting edge in house manufacturing, dedicated R&D facilities, and a robust global distribution network to deliver comprehensive end to end infrastructure services. With a team of over 300 highly skilled professionals, including more than 150 certified engineers holding top tier certifications, we bring 15 years of proven expertise in designing, deploying, and maintaining mission-critical IT environments for enterprises worldwide. Our vertically integrated approach ensures seamless quality control from component sourcing to final implementation.
As authorized partners for Huawei, xFusion, Dell, HPE, and Lenovo, we provide:
Computing servers
Network storage
Network switches
CPU, RAM, HARD DRIVES, and other accessories
As authorized partners for Huawei, xFusion, Dell, HPE, and Lenovo, we provide:
Computing servers
Network storage
Network switches
CPU, RAM, HARD DRIVES, and other accessories
Exhibition
Recommend Products

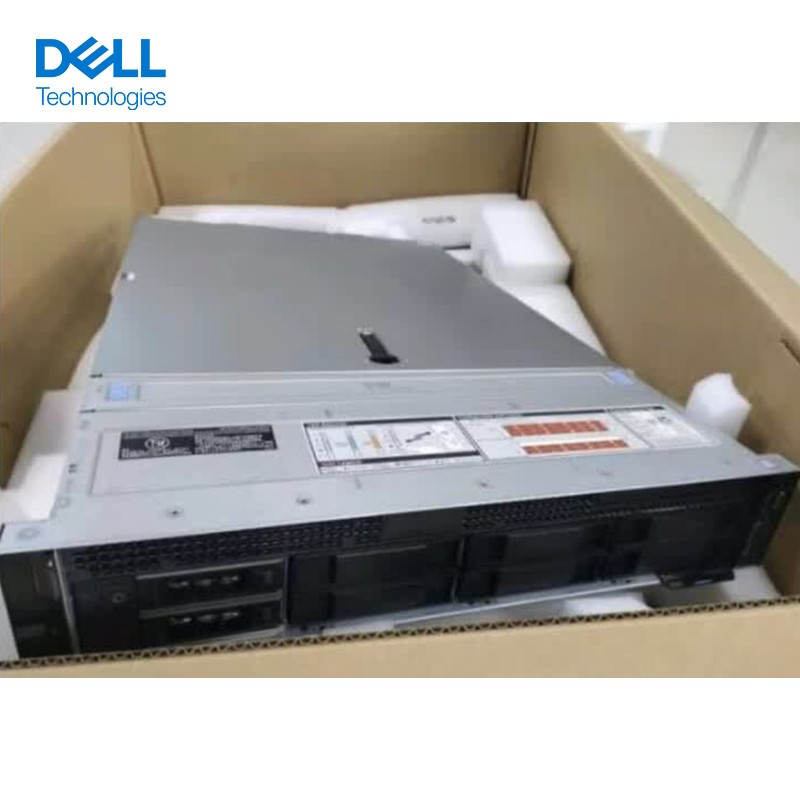

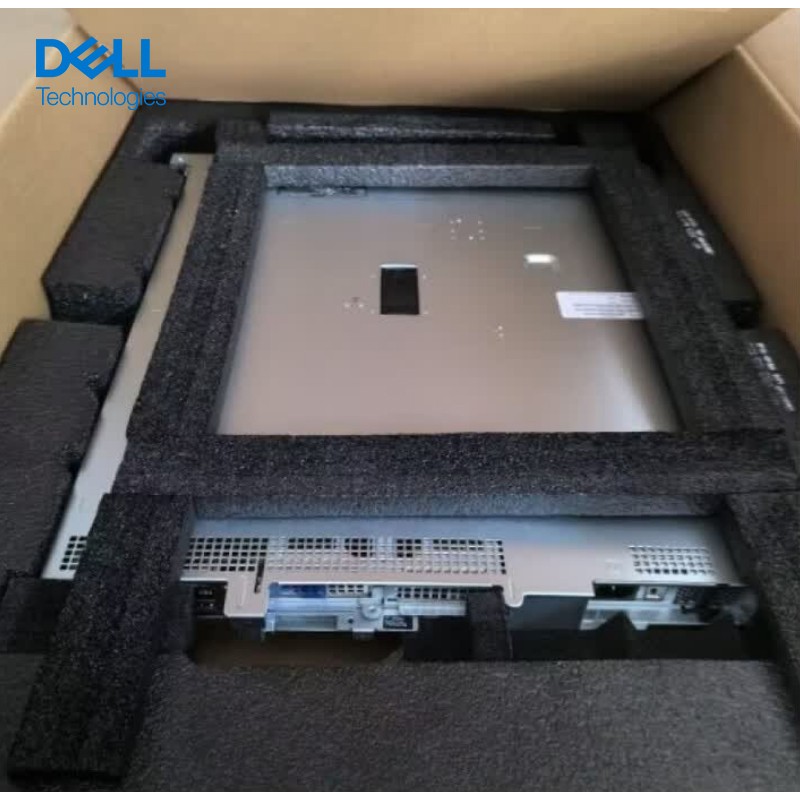

Packing & Delivery
